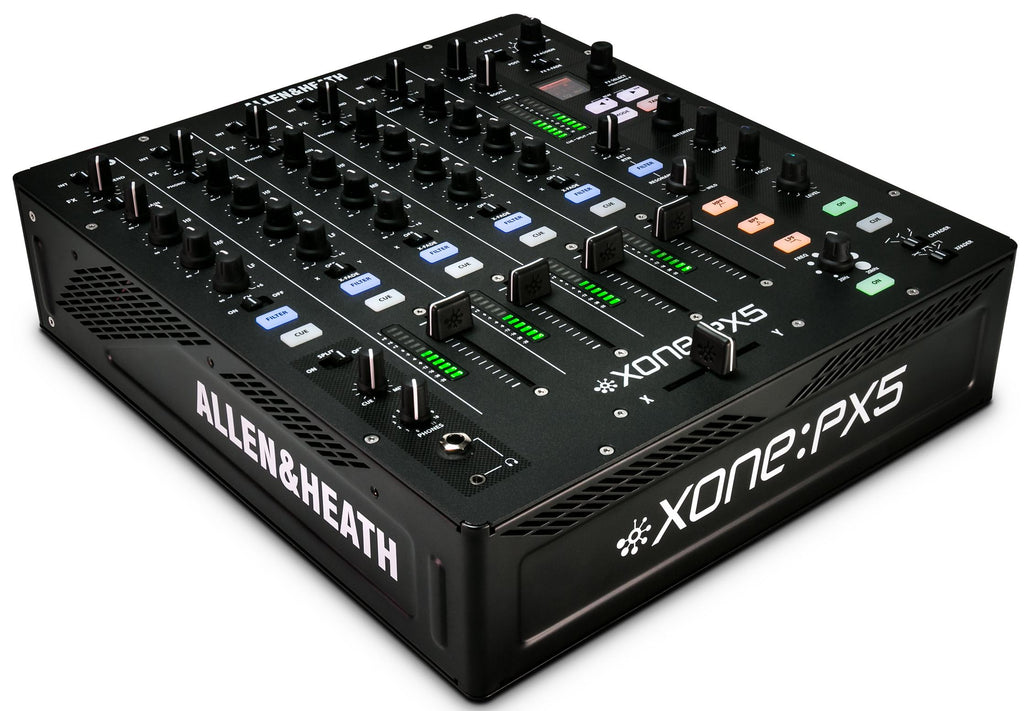

Allen & Heath XONE PX5 6 Channel Analogue DJ Mixer

The Xone:PX5 from Allen & Heath is built for the digital age with features that set this mixer apart in the digital age of the DJ.

Built To Last

The Xone:PX5 is built to last thanks to a rugged casing that is designed to live in the biggest of venues, festivals or out on the road with you. Rest assured the mixer will not let you down.

Your Truly Connected

The model delivers a pro-touring FX system alongside superb FX algorithms with detailed BPM conscious parameters and tight spectral control, which are customised to seamlessly fit into the DJ environment. The loops and FX are automatically synchronised to the tempo of the track, which allows you to easily build grooves and soundscapes without latency problems, low fidelity and the general annoyance often associated with using software and laptops. Quite simply, this is the most innovative and exciting DJ mix tool to date.;

Filter Your Sound

The PX5 features the same legendary filters that are found on the rest of the elite Xone range, meaning that you can harness the power of the PX5 to add that extra layer to your track.

As well as superb filters, the PX5 features Xone:FX which are a new breed of performance FX designed for DJs to use them to add to their sets.

Custom To You

A superb feature of the Xone:PX5 is that you can replace the crossfader with a Innofader Pro 2-Fader allowing for further fine tuning of the mixer to your personal fit and feel.

All products shown online are BRAND NEW and sealed (unless otherwise specified) and include full manufacturer warranties.

• Brand : Allen & Heath
• Custom Stock Status : Available. Usually delivered within 2-3 days
• USB/MIDI Control : Yes
• Built-in FX : Yes
• LAN Connection : Yes
• Dedicated Filter FX : Yes
• LED levels : Yes
• Rec Output : Yes
• Booth Output : Yes
• Adjustable X-fader : No
• USB Output : Yes
• Built-in iPod Dock : No

Technical Specs

- Type Analog
- Channels 4 + 1
- EQ 3-band / Total Kill (CH 1-4 + CH A)
- USB Soundcard 20 Channel (10 in / 10 out)
- USB2 / Class Compliant
- 24bit / 96kHz
- 1 x MIDI IN, 1 x MIDI Out

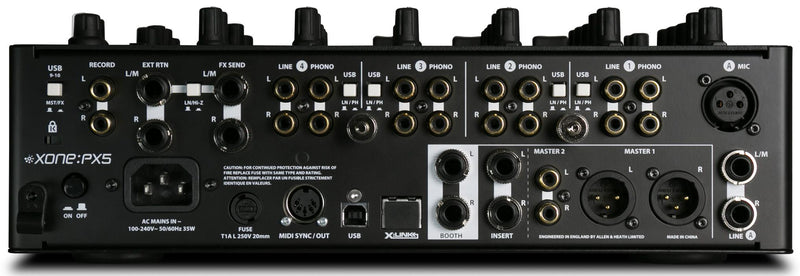

- Line Inputs 4 x RCA (CH 1-4), 1 x 1/4″ TRS (CH A) Mono/Stereo
- Phono Inputs 4 x RCA (CH 1-4), LN/PH Switch for DVS
- USB Inputs 5 x USB (CH 1-4 + CH A)
- Mic Input 1 x XLR
- Master Output 1 x XLR (Balanced)
- Master 2 Output 1 x RCA (Un-balanced)
- Booth Output 1 x 1/4″ TRS
- Record Output 1 x RCA (Un-balanced)
- Master Insert 1 x 1/4″ TRS
- MIDI Sync/Out 1 x 5-Pin DIN
- DIN Offset Control
- Send/Return I/O, 1 x 1/4″ TRS Send, 1 x 1/4″ TRS Return, 1 x LN/Hi-Z Switch
- Internal Xone:FX Yes
- Hybrid FX Mode Yes (Internal < Dual > External)
- FX Send 1 x Pre/Post Selectable (CH 1-4 + CH A)
- Filter, 1 x VCF Filter, HPF / BPF / LPF
- Adjustable Frequency & Resonance
- Assignable CH 1-4 + CH A + External Return
- X-Link 1 x RJ45
- Headphones, 1 x 1/4″, 1 x 3.5mm
- Split Cue Monitoring
- Channel Faders 60mm VCA / Replaceable
- Chanel Meters 12 Segment LED
- Channel Fader Curve 3 Types
- X-Fader 45mm VCA / Replaceable / Innofader Compatible
- X-Fader Curve Settings 3 Types
- MIDI Clock Send + Receive, Start / Stop / Pause / Tempo Bend (-/+)
- MIDI Assignable Yes (MIDI CC / MIDI Notes)
- BPM Detection Auto / Manual / Tap Tempo
- Earth Ground Terminals x 2
- Headroom 20dB
- AC Mains, 100 to 240V, AC 50/60Hz
- Consumption 35W max
- Mains Adaptor 3 pin IEC socket with cable clamp
- Fuse Rating 250V AC T1AL 20mm
- Height 4.3″, Width 12.6″, Depth 14.8″
- Weight 11.5 lbs.
