Wharfedale Connect 802 USB


Stock:

Available. Please call us on 0121 224 7650
Price:

Sale price£69

The Details

A high quality 8 channel micro mixer suitable for a range of uses with a 16bit/48kHz USB interface.

Description

The Connect 802 USB from Wharfedale Pro is a mixer of the highest quality, whilst remaining suitable for a variety of applications, thanks to the plethora or professional features normally found on the professional mixers.

Get Your Connections

The Connect 802 USB features Phantom powered, balanced XLR microphone inputs that offer a fully functioning sound whilst remaining cost effective for those on the tightest of budgets.

The inputs on this fantastic mixer are the following;

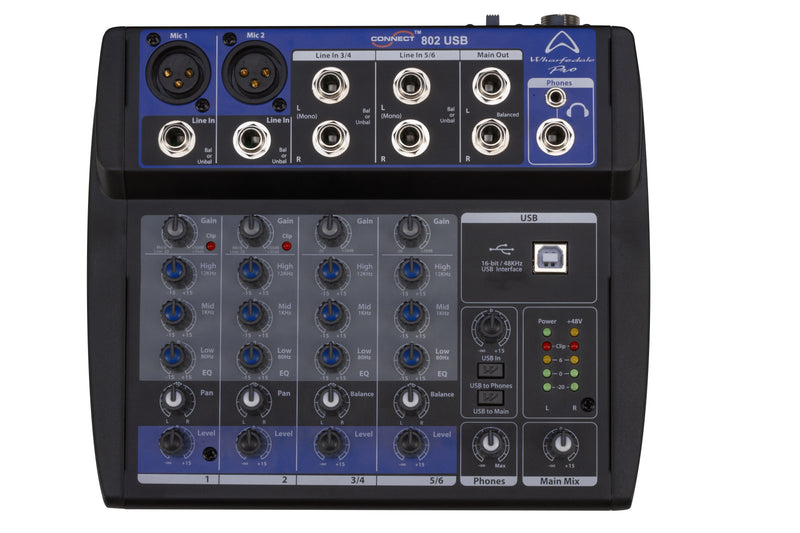

2 Balanced XLR Microphone Inputs and 2 Stereo Channels with balanced/unbalanced ¼ inch TRS Jacks.

The mixer has separate main mix & phones outputs that are individually controlled as stereo 1/8 inch and ¼ inch outputs.

This mixer is fully fledged with a 16bit/48kHz USB interface meaning it can be used a wide variety of applications.

All products shown online are BRAND NEW and sealed (unless otherwise specified) and include full manufacturer warranties.

Key features
  • Brand : Wharfedale
  • Custom Stock Status : Available. Please call us on 0121 224 7650
  • USB Output : Yes
  • Phantom Power (+48v) : Yes
Tech specs

- HUM AND NOISE: -127dB Mic Pre Equivalent Input Noise/ -95dBu Residual Noise
- MIC IN MAX INPUT LEVEL: +10dBu
- LINE IN MAX INPUT LEVEL:: +20dBu
- 2TK IN MAX INPUT LEVEL:: +20dBu
- MAXIMUM OUTPUT LEVEL: +22dBu
- MONO INPUT CHANNEL GAIN: 50dB Variable (-50~0dB)/ (-40dB~ +10dB)
- LEVEL METERS: Dual 4-Segment LED
- CLIP INDICATOR: Turns on at approx +16dBu
- FREQUENCY RESPONSE: 20Hz-20kHz ±1dB
- WEIGHT: (KG/LB): 1.88kg / 0.92kg (4.14lbs / 2.03lbs)
- MAXIMUM HEADPHONE OUTPUT LEVEL: >150mw @ 32 ohms
- INPUT CHANNEL EQ: High (±15dB) 12KHz Shelving/ Mid (±15dB) 1KHz Shelving/ Low (±15dB) 80Hz Shelving
- AC POWER: 100~120V; 220~240V, 50/60Hz
- THD: <0.0025% @ +14dBu
- DIMENSIONS (H X W X D): 311mm x 77mm x 226 mm/ (12.24" x 3.03" x 8.90")/ 315mm x 267mm x 230 mm/ (12.40" x 10.51" x 9.06")
