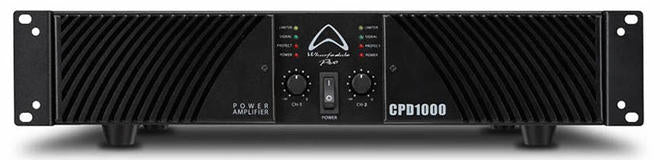

Wharfedale CPD 1000 Amplifier


Stock:

Available. Please call us on 0121 224 7650
Price:

Sale price£250

The Details

Description

CPD 1000

The CPD1000 is part of Wharfedale Pro’s latest line of professional power amplifiers driving earth shaking audio from the front of your venue, all the way to the back.
For using in stereo the amplifier delivers 250W RMS at 8 Ohms and 350W RMS at 4 Ohms; a suitable power for small to medium sized complete PA systems. In bridged mode at 4 Ohms the amplifier generates 1000W RMS, perfect for powering a subwoofer integrated into a larger PA system.
Maximum headroom audio fidelity and durability are of course vital, whilst additionally we pride ourselves on unbeatable value. The CPD series is manufactured under our strict quality assurance as are all Wharfedale Pro products, making an amp you can trust from price to performance.

Technology

Working in stereo, parallel and bridged modes CPD1000 is built for a multitude of sound system formations. Brand new class AB topology has resulted in a dynamic, high headroom amp made for propelling your loudspeakers through thick and thin with complete clarity.

Precision Control

Large rotary dials accurately adjust gain levels, and you will know when to do so from the clear and simple front panel. A 4 segment led formation displays shows vital power status, level, limit and protect information, keeping the sound engineer in the know.

Protection & Durability

The CPD1000 is rife with features that offers complete protection for your peace of mind. A built-in switchable limiter, allows over 8Vrms signal through without distortion. Additionally it is equipped with thermal, overcurrent, DC and output short protect features. Professional audio equipment is an investment. That is why the adept components of the amplifier are housed within a 2U steel chassis which is universally rack mountable. This hard wearing all-steel casing also features a removable air filter in the front bracket which can be cleaned or replaced easily.

Key Features

8 Ohms x 2: 230W RMS
4 Ohms x 2: 350W RMS
8 Ohms Bridged: 700W RMS
4 Ohms Bridged: 1000W RMS
Class AB Technology
Status and clip LEDs
Thermal, overcurrent, DC and output short protect circuitry
2 x Speakon outputs
2 x XLR outputs to link other audio equipment
2 x XLR inputs
Peak and protect LEDs
Built-in switchable limiter
Continuously variable speed fan
Suitable for small to medium sized venues

All products shown online are BRAND NEW and sealed (unless otherwise specified) and include full manufacturer warranties.

Key features
  • Brand : Wharfedale
  • Custom Stock Status : Available. Please call us on 0121 224 7650
  • Works At 2 Ohms : Yes
Tech specs

- 8 Ohms x 2 - 230W RMS
- 4 Ohms x 2 - 350W RMS
- Bridged Mono Output
- 8 Ohms - 700W RMS
- 4 Ohms - 1000W RMS
- Inputs - 2 x XLR
- Outputs - 2 x XLR, 2 x Speakon
- Frequency Response - 20Hz - 30KHz
- Topology - Class AB
- Sensitivity - 0dBu (0.775Vrms)
- Input Impedance - 20K Ohms
- Maximum Input Level - 22dBu (9.7Vrms)
- Slew Rate - >40V / us
- Crosstalk - - Signal to Noise - >100dB
- Protection - Switchable Limiter, Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute
- Display - 4 segment LED
- Cooling Variable Speed Fan

- Dimensions - 88 x 483 x 322mm
- Net Weight - 15kg / 33.06lbs
- Gross Weight - 17kg / 37.48lbs
